black new hitachi horizontal scroll compressor FL1000EL-180C3

9
MOQ
USD 1100
Price
black new hitachi horizontal scroll compressor  FL1000EL-180C3
Features Gallery Product Description Request A Quote
Features
Specifications

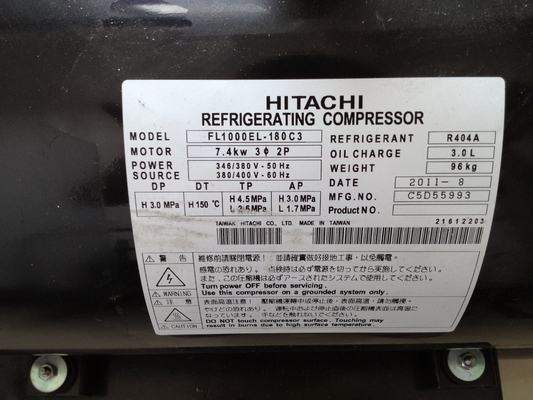

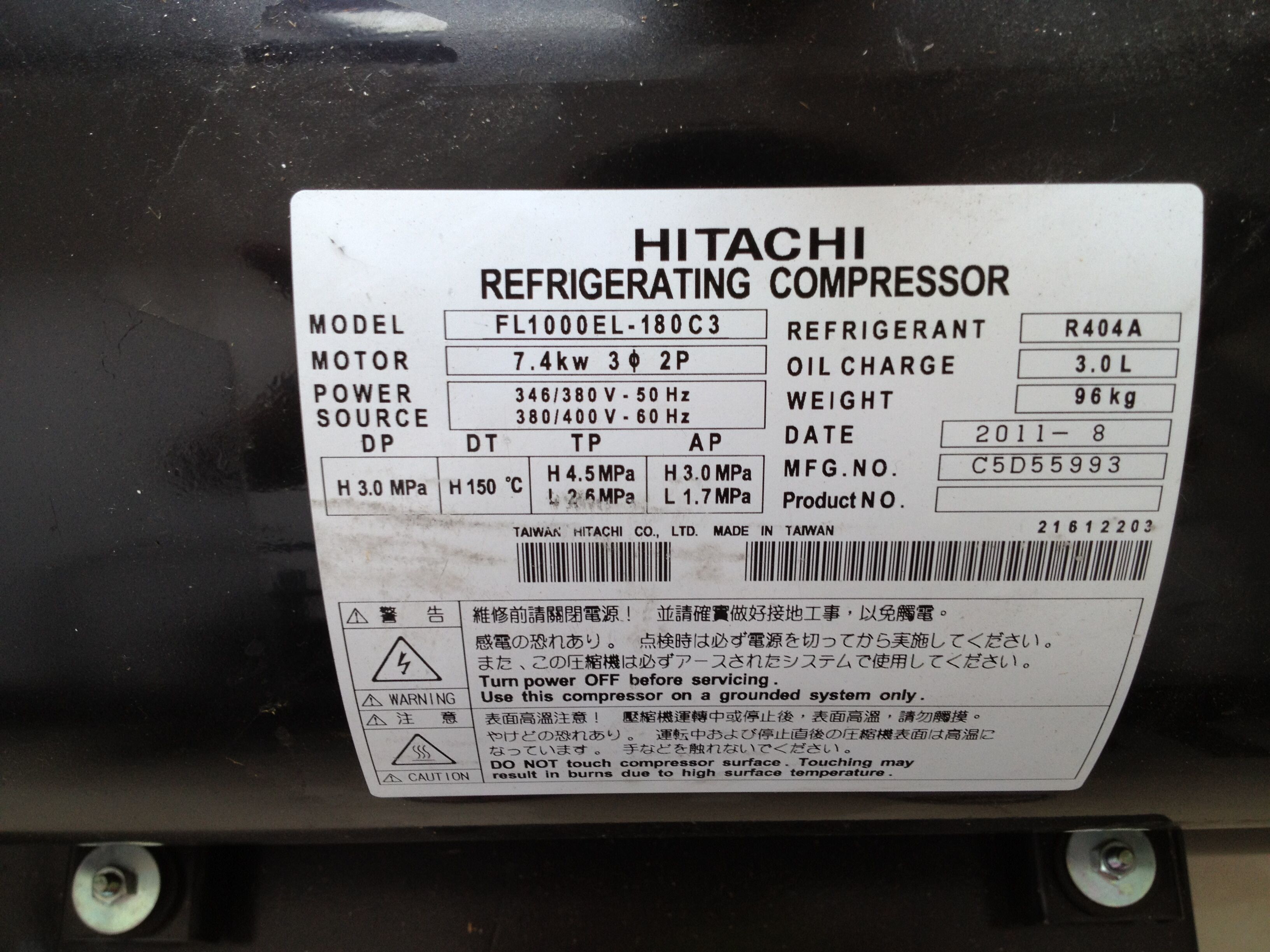

MOTOR: 7.4KW
POWER: 346/380V-50HZ 380/400V-60HZ
REFRIGERANT: R404A
OIL CHARGE: 3.0L
WEIGHT: 96KG
SOURCE: DP H3.0MPA
Basic Infomation
Place of Origin: TAIWAN
Brand Name: HITACHI
Certification: OK
Model Number: FL1000EL-180C3
Payment & Shipping Terms
Packaging Details: wood
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 9+per+1month
Product Description

Hitachi presents a complete set of high-tech electronic devices to help achieve optimal performance, and flexibility in your industrial operations. Hitachi’s electronic devices and components are preferred by global manufacturers to reduce product complexities, and improve operability of their products





FL1000eL-180C3 : Constant Speed Compressors:

Introduction of Horizontal Scroll compressor for refrigeration/freezing

Structural features

High Pressure Chamber

Intermediate Pressure Control Valve

Oil Supply system by Differential Pressure

HITACHI SCROLL USE hIGH PRESSURE Chamber

  the merit of high pressure chamber system

black new hitachi horizontal scroll compressor  FL1000EL-180C3 0



  smaller suction heat loss

smaller discharge motion

no foaming in the starting





The pressing force to the orbiting scroll by the intermediate pressure must be appropriate;too strong or weak force is unacceptable.



Application:  H.B.P

Refrigerant: HFC404A

Model:FL1000EL-180C3

Rated Output: 8.0HP 6000W

Displacement:144

Frequency: 50hz  60hz

Cooling Capacity: 13400w

Sound Level:68db

Oil Charge:3000cm

Weight:94kg
