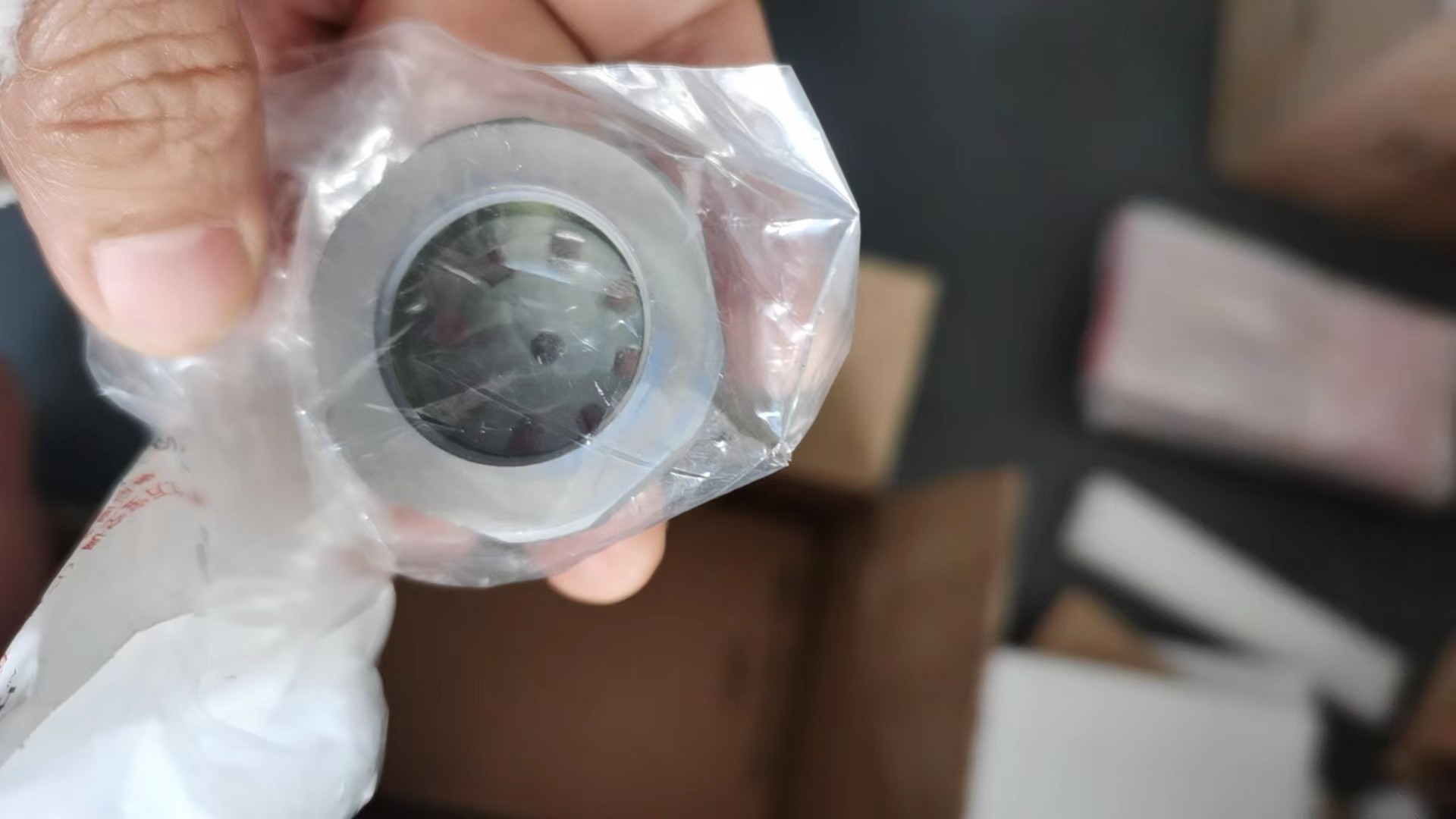

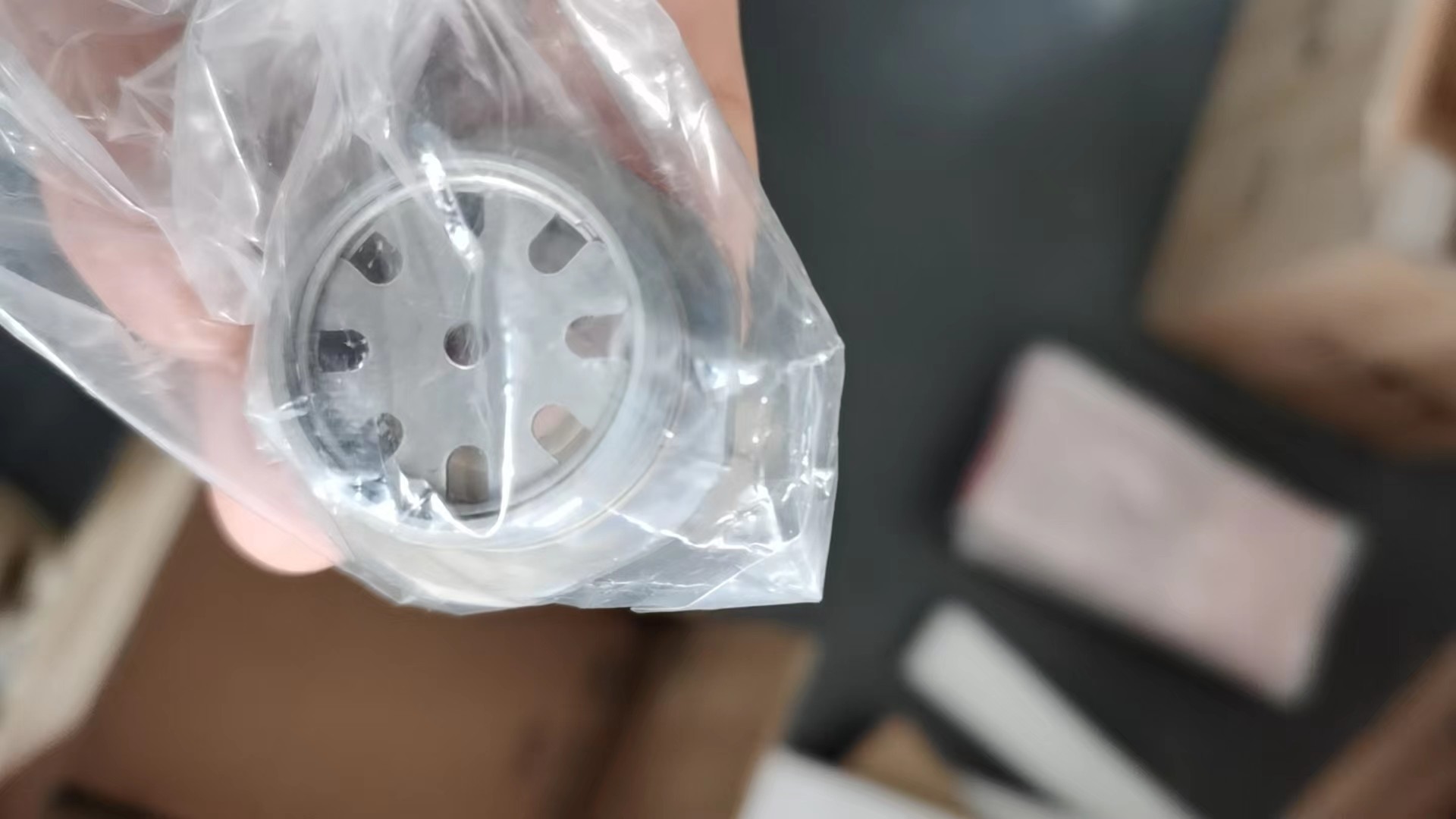

Hitachi water chillers with Sight glass G7C00677A

Hitachi water chillers with Sight glass G7C00677A

High temperature sintering process of glass and steel parts is adopted for oil-viewing mirror and spiral-viewing mirror, which has beautiful appearance, good strength and high glass transparency, the video liquid mirror is suitable for all kinds of refrigeration equipment, compressor and other mechanical use.

Performance characteristics ● the sealing structure and the use of easy-to-observe and high-sensitivity indicator elements, ● the liquid-viewing mirror through the color change in the water content indicator system; ●

liquid-viewing mirror maximum operating temperature: 70 ° C ● liquid-viewing mirror, maximum operating pressure: 35 bar; fold edit how this section works the liquid moisture indicator is designed to provide the user with an accurate way to determine the quality and moisture content of the refrigerant in the system.

A wide-angle lens allows you to see the refrigerant in the system, so it's easy to see Bubbles or flash gases in the system, indicating whether the refrigerant dose needs to be filled properly. The indicator element in the center of the eyepiece is highly sensitive to moisture and changes color gradually with the moisture content in the system. This section is suitable for the occasion to be used to indicate:

1, the refrigerant in the refrigerating device liquid pipeline status; 2, the water content in the refrigerant; 3. The flow of the oil from the oil separator in the oil return line.
